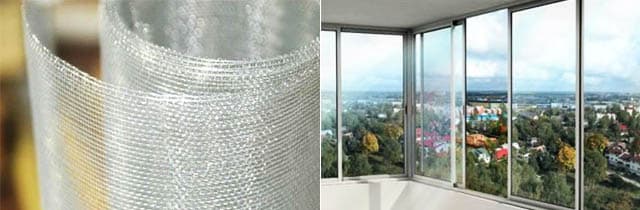

Square Opening Aluminium Window Screen

Ultra-high quality bright aluminum insect screening has excellent visibility in natural aluminum color, offering good air ventilation. This strong and durable screening resists rust and will not sag.

Aluminum Mesh common specifications:

• Material: Aluminum wire.Aluminum alloy wire.
• Type of weave: plain weave
• Common specification (mesh/inch):14×14, 16×14, 16×16, 18×16, 18×18, 18×14
• Common wire diameter: BWG30, BWG31, BWG32, BWG33.
• Regular size: 0.8M×30M, 1.0M×30M, 1.2M×30M, 1.5M×30M.

Aluminum window screen advantages:

• Strong and durable screening.

• A favorite choice for restoration projects.

• Excellent visibility insect screens.

• Offers good air ventilation.

• A protective finish prevents corrosion and strengthens the weave.

Aluminum window screen application:

Square opening aluminum window screening is widely used in hotel, restaurant, communal building and residential houses to keep the common insects or birds.

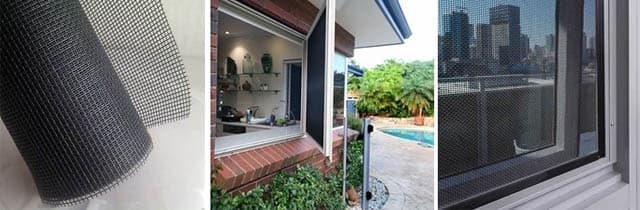

Black Powder Coated Aluminum Screen

Black Powder Coated Aluminum Screen has a protective finish of black vinyl coating that prevents corrosion and enhances the weaving. Aluminum mesh treated with black powder coatinghas good corrosion resistance, light weight, good air ventilation and long service life and makes an ideal window screening material.

Black powder coated aluminum screen common specifications:

• Materials applied: Aluminium alloy, pure aluminium wire, Al-Mg alloy wire, etc.
• Common wire diameter: BWG30, BWG31, BWG32, BWG33.
• Mesh:18x16,16x16,14x13, etc.
• Surface treatment: Powder coating
• Color: Black
• Weaving: Plain weaving

Black powder coated aluminum screen advantages:

• Perfect flat surface, beautiful finish, well-proportioned aperture, and no blemish.

• Good stability and resistance to rust, heat, acid, alkaline and corrosion.

• Aluminum wire with black epoxy coating offers good UV blocking.

• Resists damage caused by pets.

• Good air ventilation and visibility.

• Easy to install and transport.

• Minimizes outside glare.

Black powder coated aluminum screen application:

The primary use of black aluminum screen is to keep leaves, debris, insects, birds, and other animals from entering a building or a screened structure such as a porch, while permitting fresh air-flow.

Used as machinery protection material, also ventilation material receiving signals and preventing insects.

Charcoal Aluminum Insect Screen

Charcoal aluminum mesh screen is woven from aluminum alloy or pure aluminum wire then with charcoal treatment. The charcoal treatment offers reduced glare and greater visibility. Made from the same diameter wrap wire and weft wire, this kind of aluminum mesh has square opening mesh with plain weaving, offering uniform opening and firm structure.

Charcoal aluminum mesh insect screen is great for window insect screens against flies and other insects. It also will keep the most pesky critters and tree leaves out.

Charcoal aluminum mesh screen common specifications:

• Materials applied: Aluminium alloy, pure aluminium wire, Al-Mg alloy wire, etc.
• Wire diameter: 0.15--0.25mm
• Wire Gauge : BWG31--34.
• Common Mesh: 12*14 , 16*16 , 18*18 , 18*14 , 22*22 , etc.
• Roll Width : 0.5--1.5m.
• Roll Length:2--30m.
• Weaving Type: Plain weave

Charcoal aluminum insect screen advantages:

• Good corrosion resistance.
• Rust resistance.
• Light weight.
• Good air ventilation.
• Long using life.
• Easy to install and transport.

Charcoal aluminum mesh screen application:

Ultra-High Quality Charcoal Aluminum Insect Screen mesh with the features of non-corrosive and weather resistant, is commonly used for windows and doors insect screen, porch and patio enclosures in hotels, offices and home against insects. It will not rust or mildew.

Aluminum Tuff Mesh

Aluminum Tuff Mesh is made from black coated aluminum wire woven by high looms, stronger than fiberglass insect screen. It has square holes with 14 mesh or 16 mesh per inch. Aluminum Tuff Mesh is commonly used for machinery protection and windows/doors insect screens against flies and mosquitoes.

Aluminum Tuff Mesh Common specifications:

• Material: aluminum wire.

• Weaving: plain weave, twill weave, plain dutch weave and twilled dutch weave.

• Surface treatment: black vinyl coating.

• Wire diameter: 0.41mm and 0.46mm (after black vinyl coated).

• Mesh 14 × 14 × 0.41mm.

• Mesh 14 × 14 × 0.46mm.
• 760mm x 14meters (16m,30m)
• 910mm x 14meters (16m,30m)
• 1220mm x 14meters (16m,30m)

Aluminum Tuff Mesh Advantages:

• Perfect flat surface, beautiful finish, well-proportioned aperture, and no blemish.
• Aluminum wire with PVC coating
• Strong durable mesh
• Resists damage caused by pets
• Minimizes outside glare
• Maintains visibility

Aluminum Tuff Mesh Application:

• With superior toughness and UV stabilized, aluminum tuff mesh is widely used for windows and doors insect screen to prevent flies and other insects out.

• It also is the good materials as shields on machinery or equipment, wire fence for livestock or flowers and trees.

• Another usage of this mesh is made to poultry cage, eggs baskets, foodstuff basket, paper basket in home or office.
