Reinforcing Welded Mesh

Golden Metal Supply:

A):Ribbed Steel Bar Reinforcing Welded Mesh;

B):Round Steel Bar Reinforcing Welded Mesh;

Strong welded point ensure flat even surface and firm structure,

Welcome send inquiry!

Inquire Now None

PRODUCT DESCRIPTION

Reinforing Welded Mesh:

Reinforing Welded Mesh is also called Reinforcement Welded Mesh,Concrete Reinforcement Welded Mesh.

Material: ribbed steel bar or round steel bar.

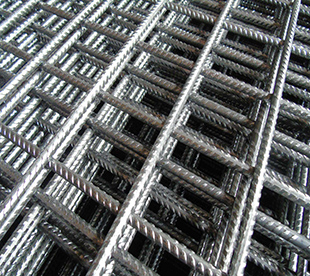

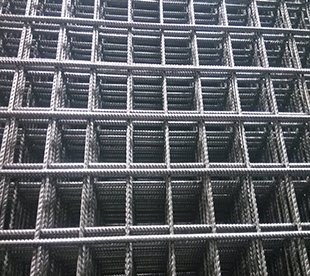

Ribbed Steel Bar Reinforing Welded Mesh:

Reinforcing Welded Mesh

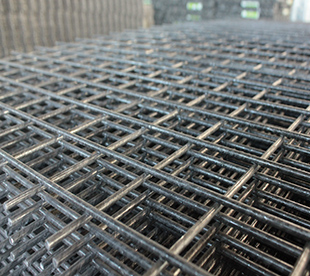

Round Steel Bar Reinforcing Welded Mesh:

Reinforcing Welded Mesh

Production Technology of Reinforcing Welded Mesh:

the machine is automatic welding equipment,it is antomatic welded by ribbed steel bar or round steel bar.

Specifications of Reinforcing Welded Mesh:

Fabric reference	Longitudinal Wire		Cross Wire		Steel Area (mm2/m)		Nominal Mass per Square Meter(kg/m2)
Fabric reference	Diameter(mm)	Spacing(mm)	Diameter(mm)	Spacing(mm)	Main(mm)	Cross(mm)	Nominal Mass per Square Meter(kg/m2)
Square Mesh
A12	12	200	12	200	565	565	8.88
A11	11	200	11	200	475	475	7.46
A10	10	200	10	200	393	393	6.16
A9	9	200	9	200	318	318	4.99
A9	8	200	8	200	252	252	3.95
A7	7	200	7	200	193	193	3.02
A6	6	200	6	200	142	142	2.22
A5	5	200	5	200	98	98	1.54
A4	4	200	4	200	68	68	0.99
Rectangular Mesh
B12	12	100	8	200	1131	252	10.90
B11	11	100	8	200	950	252	9.44
B10	10	100	8	200	785	252	8.14
B9	9	100	8	200	636	252	6.97
B8	8	100	8	200	503	252	5.93
B7	7	100	7	200	385	193	4.53
B6	6	100	7	200	283	193	3.73
B5	5	100	7	200	196	193	3.05
Long Mesh
C12	12	100	8	400	1131	126	9.87
C11	11	100	8	400	950	126	8.44
C10	10	100	6	400	785	71	6.72
C9	9	100	6	400	636	71	5.55
C8	8	100	5	400	503	49	4.34
C7	7	100	5	400	385	49	3.41
C6	6	100	5	400	283	49	2.61
C5	5	100	5	400	196	49	1.93
Small Square Mesh
D12	12	100	12	100	1131	1131	17.76
D11	11	100	11	100	950	950	14.91
D10	10	100	10	100	785	785	12.32
D9	9	100	9	100	636	636	9.98
D8	8	100	8	100	503	503	7.90
D7	7	100	7	100	385	385	6.04
D6	6	100	6	100	283	283	4.44
D5	5	100	5	100	196	196	3.08
D4	4	100	4	100	126	126	1.97

Feature of Reinforcing Welded Mesh:

flat even surface, firm structure;Save time and labor of work; Strengthen the concrete parts to reduce surface breaking ratio;

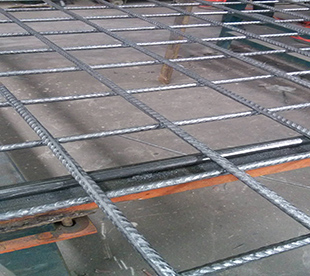

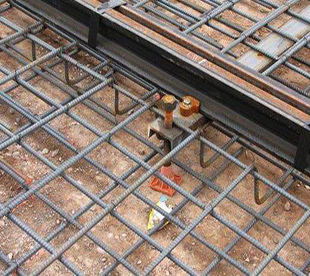

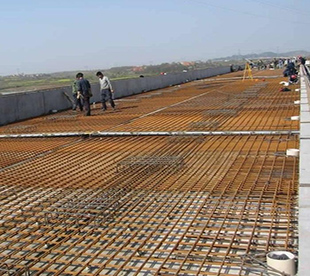

Usage of Reinforcing Welded Mesh:

it is used to provide tensile strength and crack contro to strutural concrete elements, and also widely used in industry,agriculture,building,transportation,mine etc.
